iV1 & iV2 Controller Gallery
Explore both controllers — from the 360° joystick and control panel to the Anderson plug and aviation-style connectors.
Need high-resolution images for your catalog?
Request High-Res PhotosWhy Dealers Stock ZVCARE Controllers
Six reasons our joystick controllers are an easy add to your parts line.
Electromagnetic Brake — Holds on Slopes
Both the iV1 and iV2 electric wheelchair joystick controllers use an electromagnetic brake, not just an electronic brake. Release the joystick and the chair stops; cut the power and it still holds. On a slope it stays put instead of rolling back — a safety difference your customers feel on the first test drive.
Electromagnetic brake360° Joystick with Adjustable Speed and Power

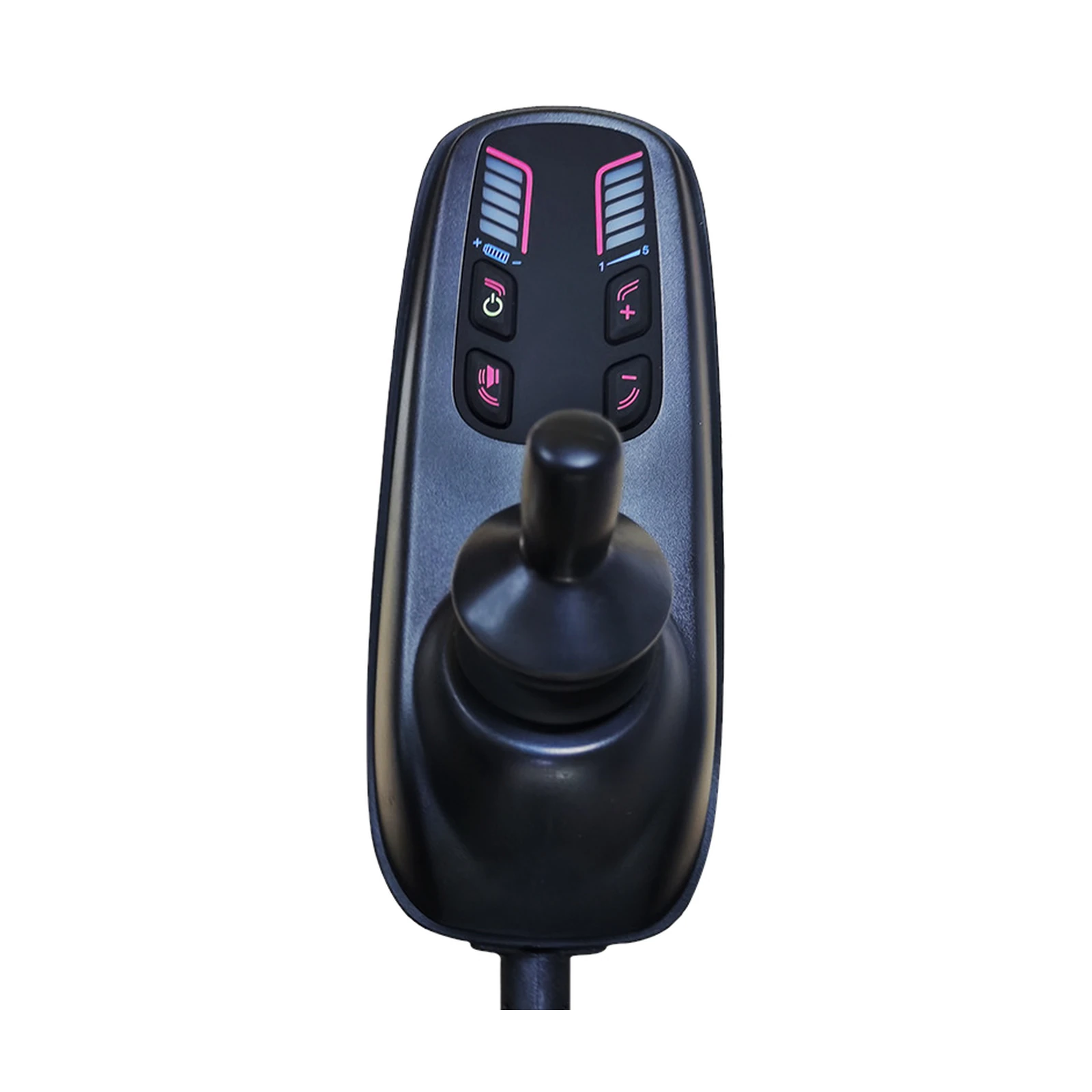

The joystick rotates a full 360° with a clear, simple interface. Both speed and power output are adjustable (see our demo videos), so dealers can tune the driving feel for indoor maneuvering or outdoor cruising.
360° joystickABS Anti-Lock Braking
Anti-lock braking keeps the wheels from locking during hard stops, for stable, controlled deceleration. The iV2 adds a dedicated anti-lock brake system tuned for brushless drive.
ABS brakingDSP Aviation-Grade Chip (iV2)
The iV2 brushless controller runs on an advanced DSP chip built to aviation-grade standards, with strong anti-interference performance and a stable signal. The result is smoother response and a longer service life than entry-level single-chip controllers.
DSP chipSerious Power Headroom (iV1)
The iV1 brushed controller is available in 70A / 1680W and 50A / 1200W versions, with a DC 20–30V operating range — enough headroom to drive dual-motor wheelchairs confidently under full load.
70A / 1680WMatched Pairs, Factory Tested
Each electric wheelchair joystick controller and motor must be matched by type: the iV1 pairs with brushed motors, the iV2 with brushless motors — they cannot be mixed. Order them as a factory-matched set and every unit is tested together before it ships.
Factory-matched setsElectric Wheelchair Joystick Controller Demo Videos
Watch the iV1 and iV2 in action — product overview, speed and power adjustment, and motor connection.
Key Specifications
Full specifications for your product documentation — ZVCARE iV1 and iV2 wheelchair controllers.

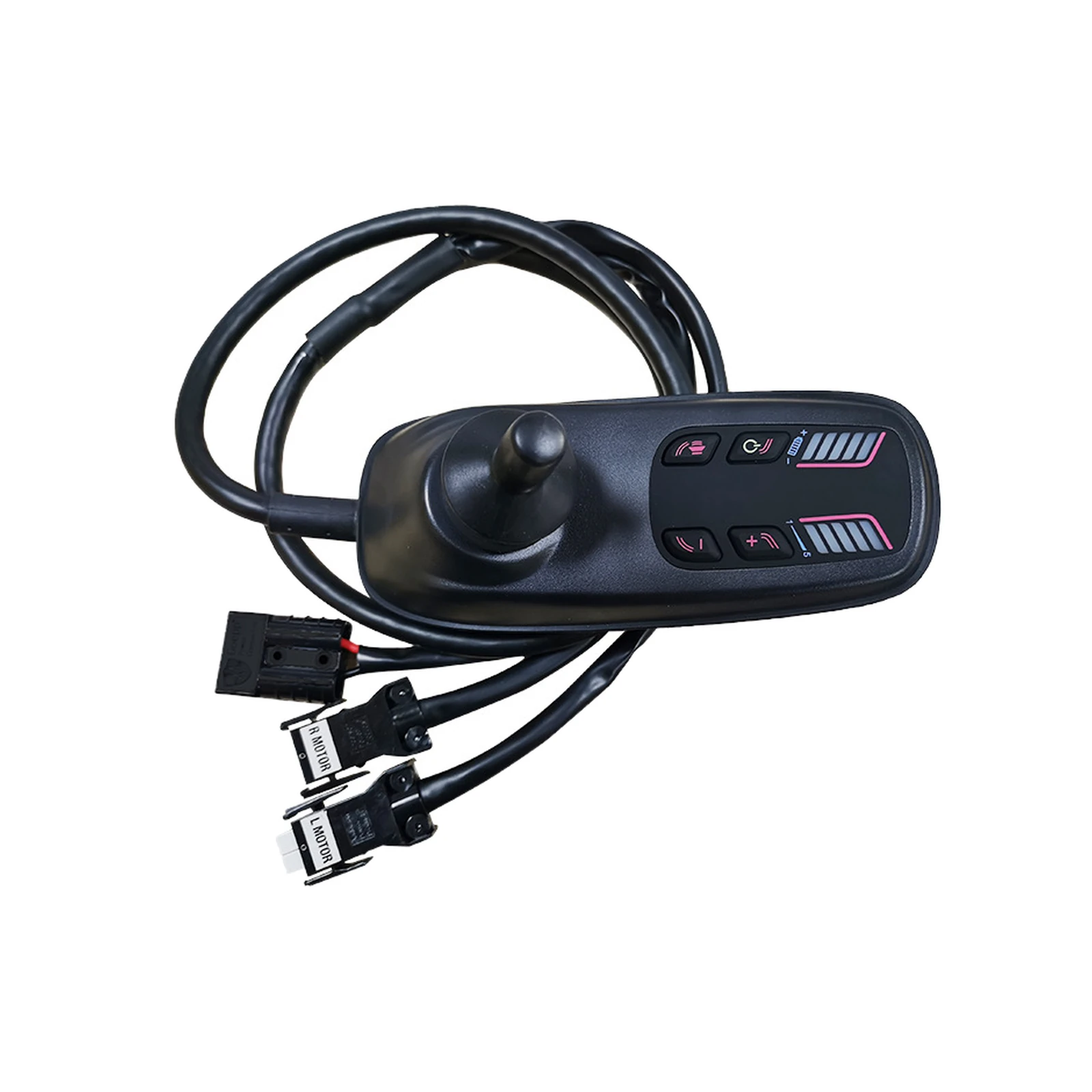

iV1 Brushed Controller
DC 20–30V, up to 70A / 1680W — the workhorse for brushed drive systems.

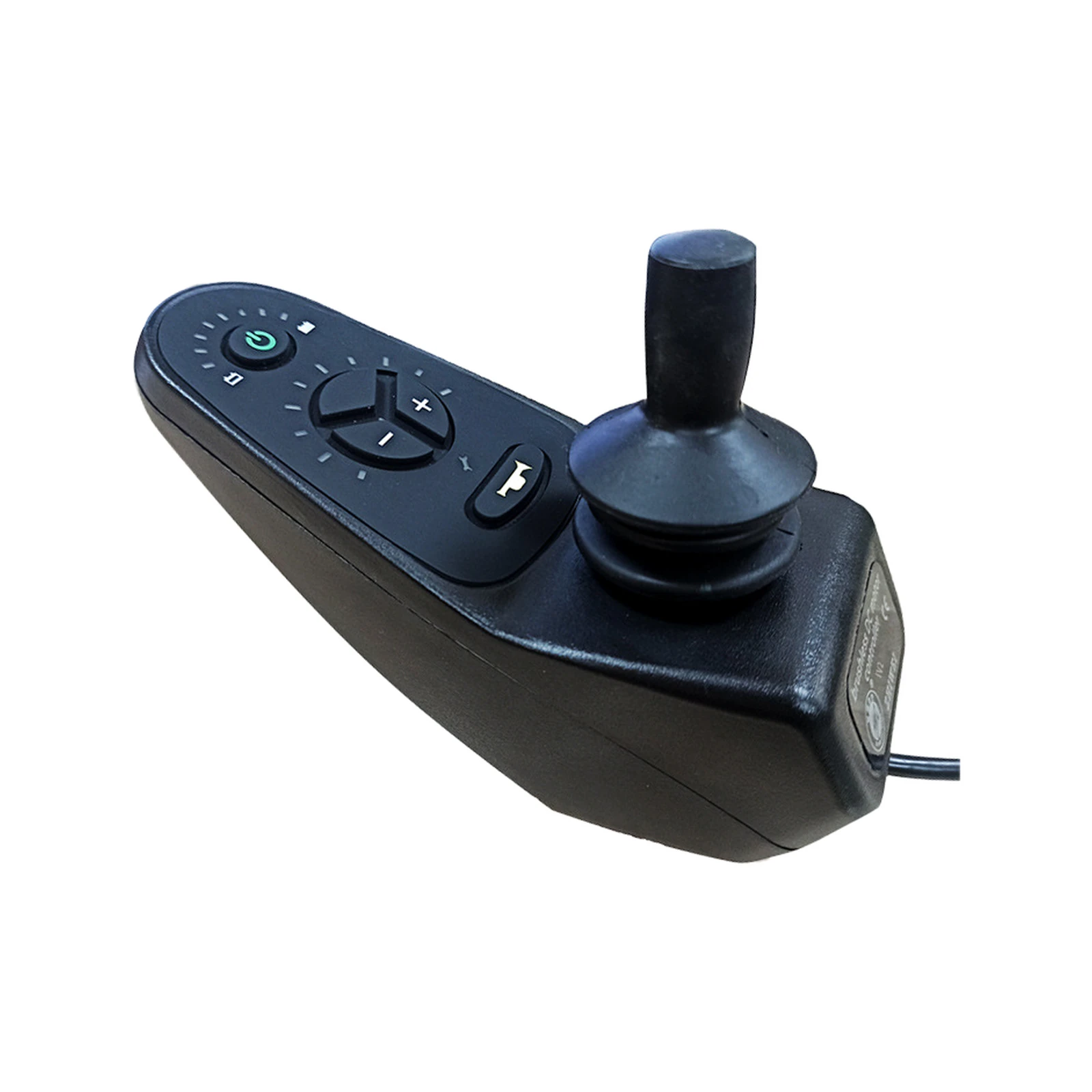

iV2 Brushless Controller
DSP aviation-grade chip, 50A / 1200W — built for brushless motors.
Electromagnetic Brake
Release-to-stop, power-off holding, locked on slopes — standard on both.

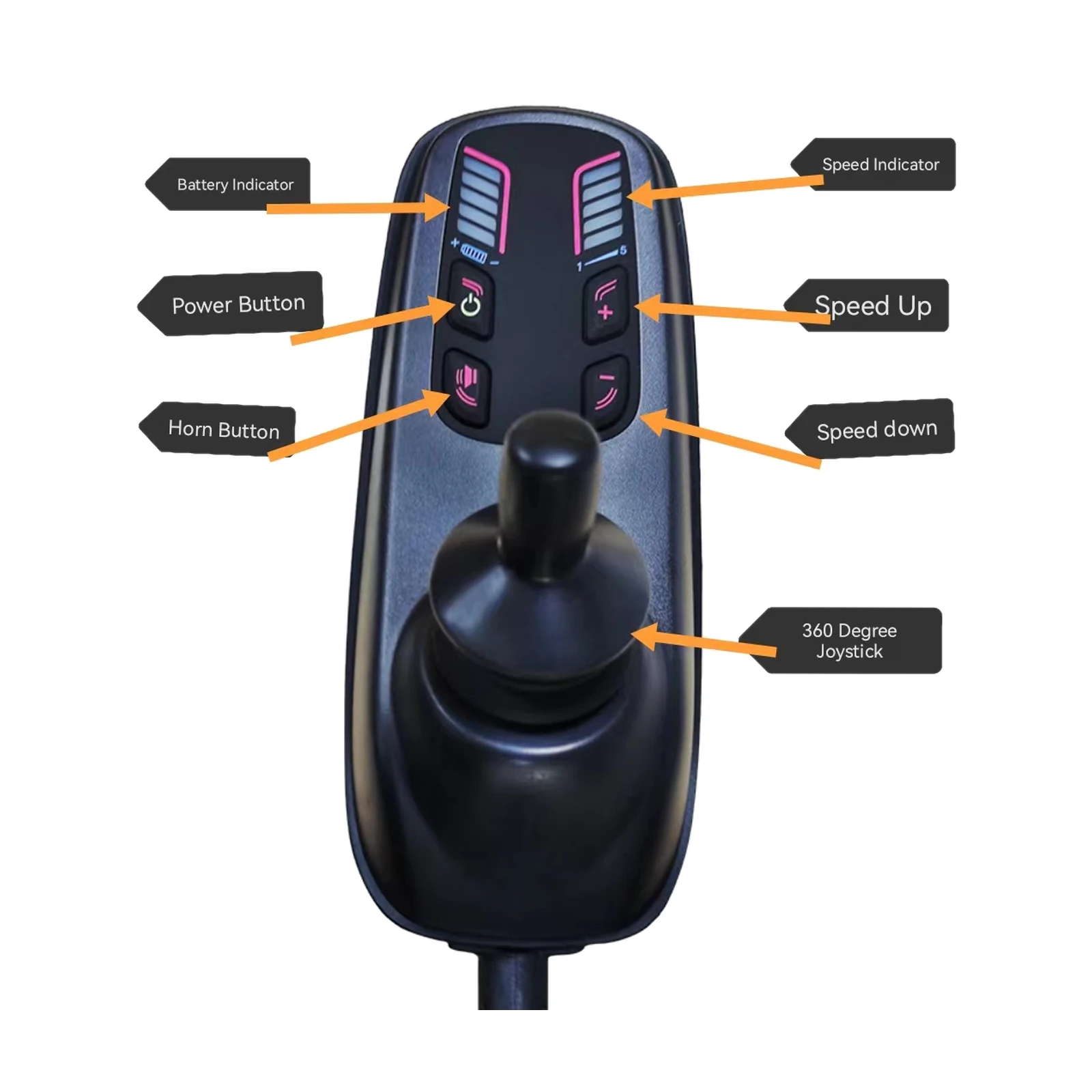

360° Joystick
Full-rotation joystick with adjustable speed and power output.
iV1 — DC Brushed Controller
iV2 — Brushless Controller
iV1 vs iV2 at a Glance
Get detailed technical documentation for your market
Download Full Spec SheetWhy Controller and Motor Must Match
Brushed and brushless drive systems speak different electrical languages. A brushed controller outputs a variable DC voltage; a brushless motor needs three-phase electronic commutation from its controller — so the iV1 pairs only with brushed motors (DR1 / DR2 / DR3) and the iV2 only with the brushless DR8. Order them as a factory-matched motor + controller set and every unit is tested together before it ships.
Key Facts at a Glance
What every dealer should know about ZVCARE controllers.
- Electromagnetic brake standard on both: release the joystick and the chair stops; cut the power and it still holds — including on slopes.
- Adjustable speed and power: tune the driving feel for indoor maneuvering or outdoor cruising — see the demo videos.
- Order as a matched set: iV1 with brushed motors, iV2 with brushless — tested together at the factory before shipping.
Talk to our factory team about controllers
Get a QuoteFrequently Asked Questions
Get instant answers to common inquiries about the iV1 and iV2 controllers, ordering process, and support services.
What is the difference between the iV1 and the iV2?
The iV1 is a brushed-motor controller (up to 70A / 1680W) and the iV2 is a brushless-motor controller (50A / 1200W) built around a DSP aviation-grade chip. Both share electromagnetic braking, ABS, a 360° joystick, and adjustable speed and power. Choose by motor type: iV1 for brushed motors, iV2 for brushless.
Can I use the iV1 with a brushless motor, or the iV2 with a brushed motor?
No. Brushed and brushless systems are not interchangeable — the controller and motor must be the same type. We recommend ordering them as a factory-matched set, tested together before shipping.
What is an electromagnetic brake, and how is it different from an electronic brake?
An electromagnetic brake uses a solenoid valve in the motor: release the joystick and it stops, cut the power and it still holds — including on slopes. An electronic brake has no solenoid valve; it can stop the chair but cannot lock it firmly, so the chair may roll back on a slope.
Is the driving speed adjustable?
Yes. Both speed and power output are adjustable through the controller interface — see our demo videos showing maximum-speed adjustment and power adjustment in action.
What can the iV2 be used for besides wheelchairs?
The iV2 suits any 24V-class brushless drive application: mobility scooters, forklifts, weeding vehicles, and electric trolleys, in addition to electric wheelchairs.
What connectors do the controllers use?

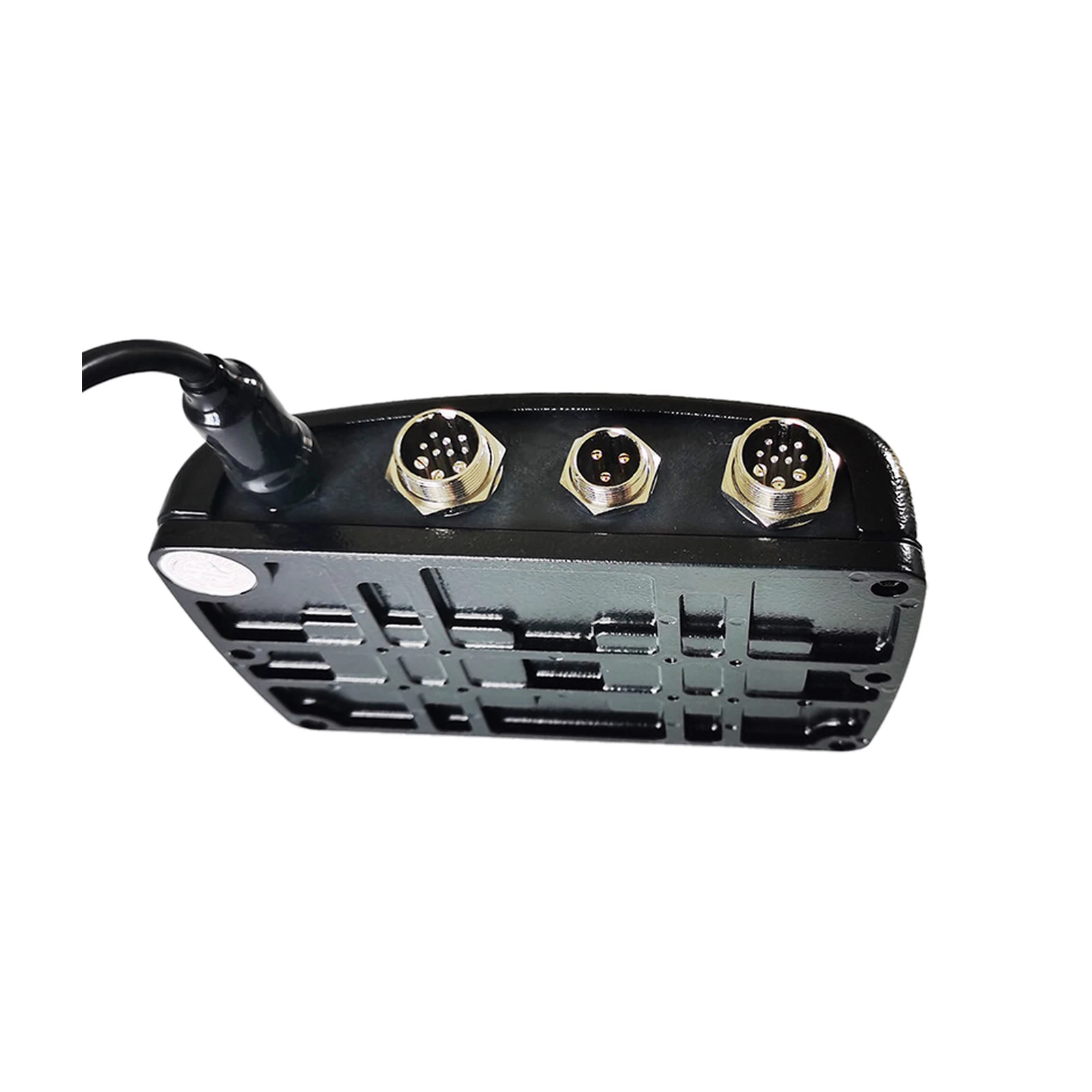

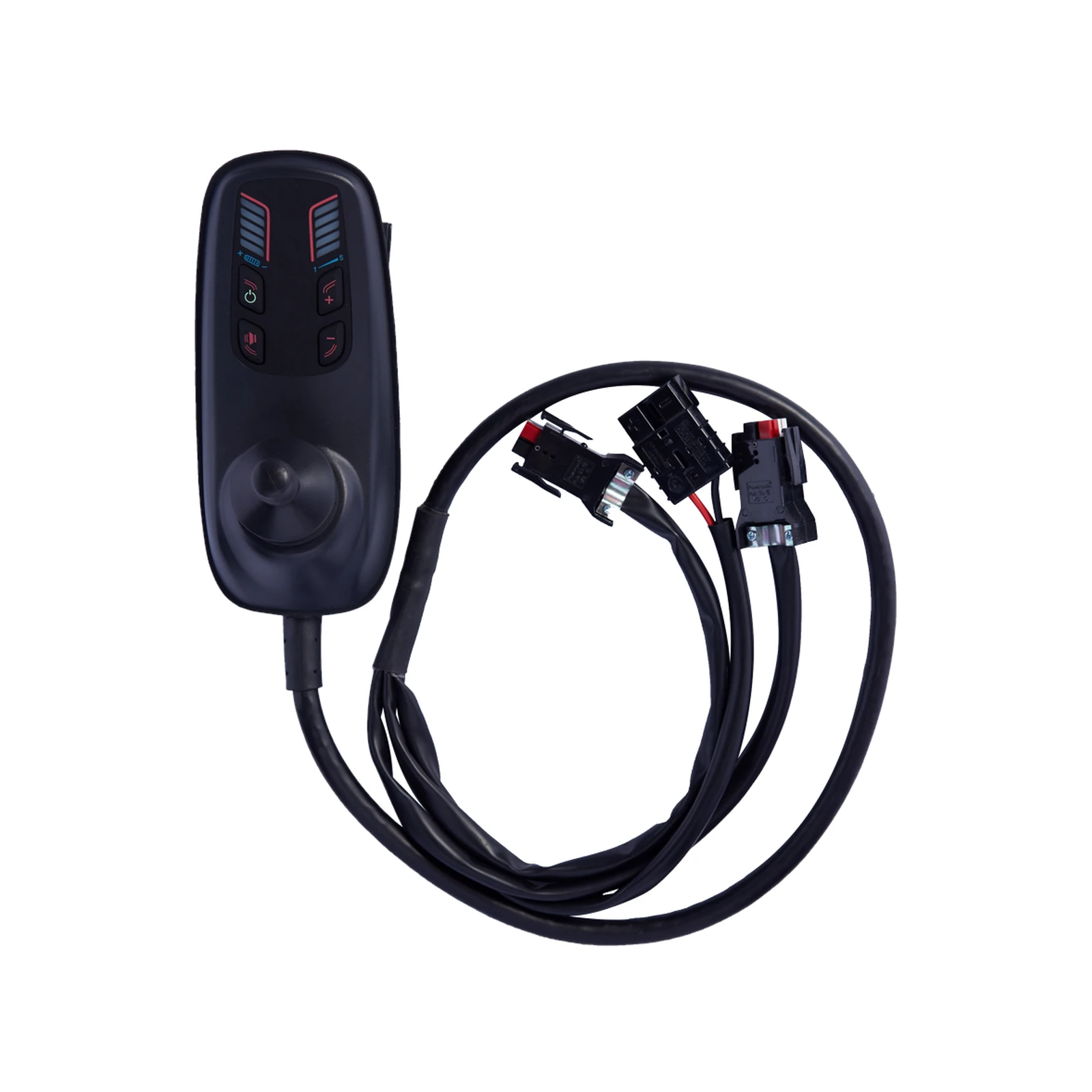

The iV1 uses the Anderson standard plug for power, plus round-plug motor connections. The iV2's control box uses aviation-style connectors at the rear. OEM connector options are available on request.
What are your MOQ, lead time, and warranty for controllers?
MOQ is 1 piece, lead time is 7 days after payment, and controllers carry a 12-month warranty. OEM options (logo, packaging, connector configuration) are available — contact Peter or Alice for wholesale pricing.
Still have questions about ZVCARE controllers?
Ask Our TeamBusiness Terms
Straightforward terms designed for distributors testing a new market.
1-Piece MOQ
MOQ: 1 piece — order a single electric wheelchair joystick controller to test your market before committing to volume.
7-Day Lead Time
Lead time: 7 days after payment received.
12-Month Warranty
Warranty: 12 months for controllers. Claims require the product serial number plus photos/videos; covers normal use only.
OEM / ODM
OEM/ODM: logo, packaging, and connector configuration available — contact our factory team and we'll confirm feasibility and pricing.
Volume Discounts
Stable pricing for repeat orders; graduated discounts by volume.
Ready to Add ZVCARE Controllers to Your Parts Line?
1-piece MOQ and 7-day lead time — put factory-matched wheelchair controllers on your shelf this month. Contact our factory team for wholesale pricing and OEM options.
