Motor Gallery
Explore the brushed DR series and the brushless DR8 — gearboxes, brake levers, and mounting hardware.
Need high-resolution images for your catalog?
Request High-Res PhotosWhy Dealers Stock ZVCARE Motors
Six reasons our wheelchair motors are an easy add to your parts line.
Electromagnetic Brake — Standard on Every Model
All our motors use an electromagnetic brake with a solenoid valve: release the joystick and the chair stops, cut the power and it still holds — even on a slope. Electronic-only brakes can't lock firmly and may roll back on inclines.
Electromagnetic brakeBrushed Range: 200W, 250W, 320W

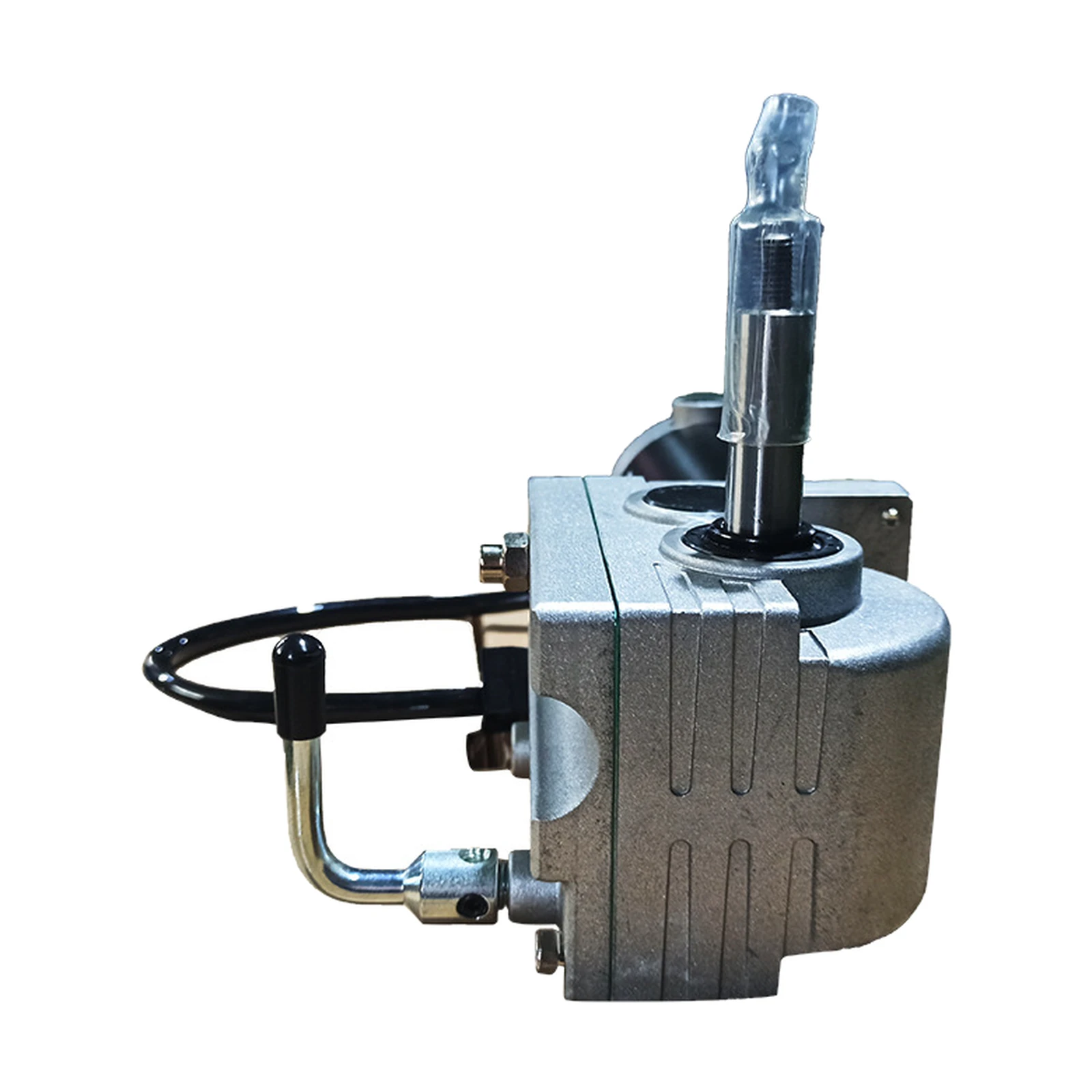

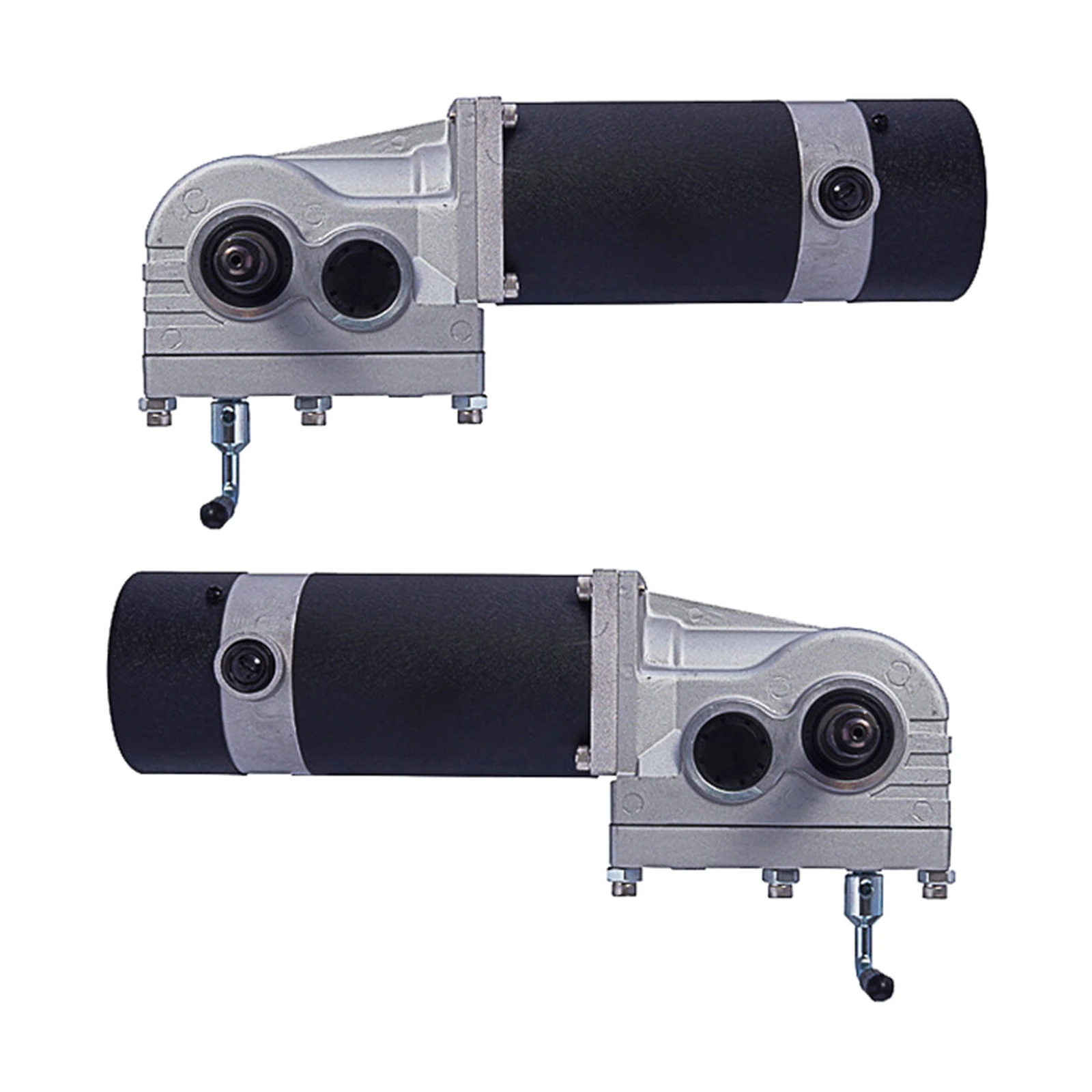

The DR1, DR2, and DR3 brushed gear motors cover 200W to 320W at 24V. Brushed drive means lower cost, simple control, and strong starting torque — the practical choice for value-positioned chairs and price-sensitive markets.
200–320W brushedBrushless DR8: Maintenance-Free Drive
The DR8 brushless electric wheelchair motor has no carbon brushes to wear out — nothing to replace, ever. Sealed grease lubrication keeps it maintenance-free for its whole service life.
Maintenance-freeQuiet, Efficient, Longer Range
Without brush friction, this brushless electric wheelchair motor runs quieter and converts more battery energy into motion instead of heat. Less wasted energy means more kilometers per charge for the end user.
Higher efficiencyStrong Climbing, Stable on Slopes
High-torque gearing (17:1 reduction on the DR8) delivers steady hill climbing under load. Combined with the electromagnetic brake, the chair holds its position on slopes instead of drifting.
17:1 gearingManual / Electric Clutch (DR8)

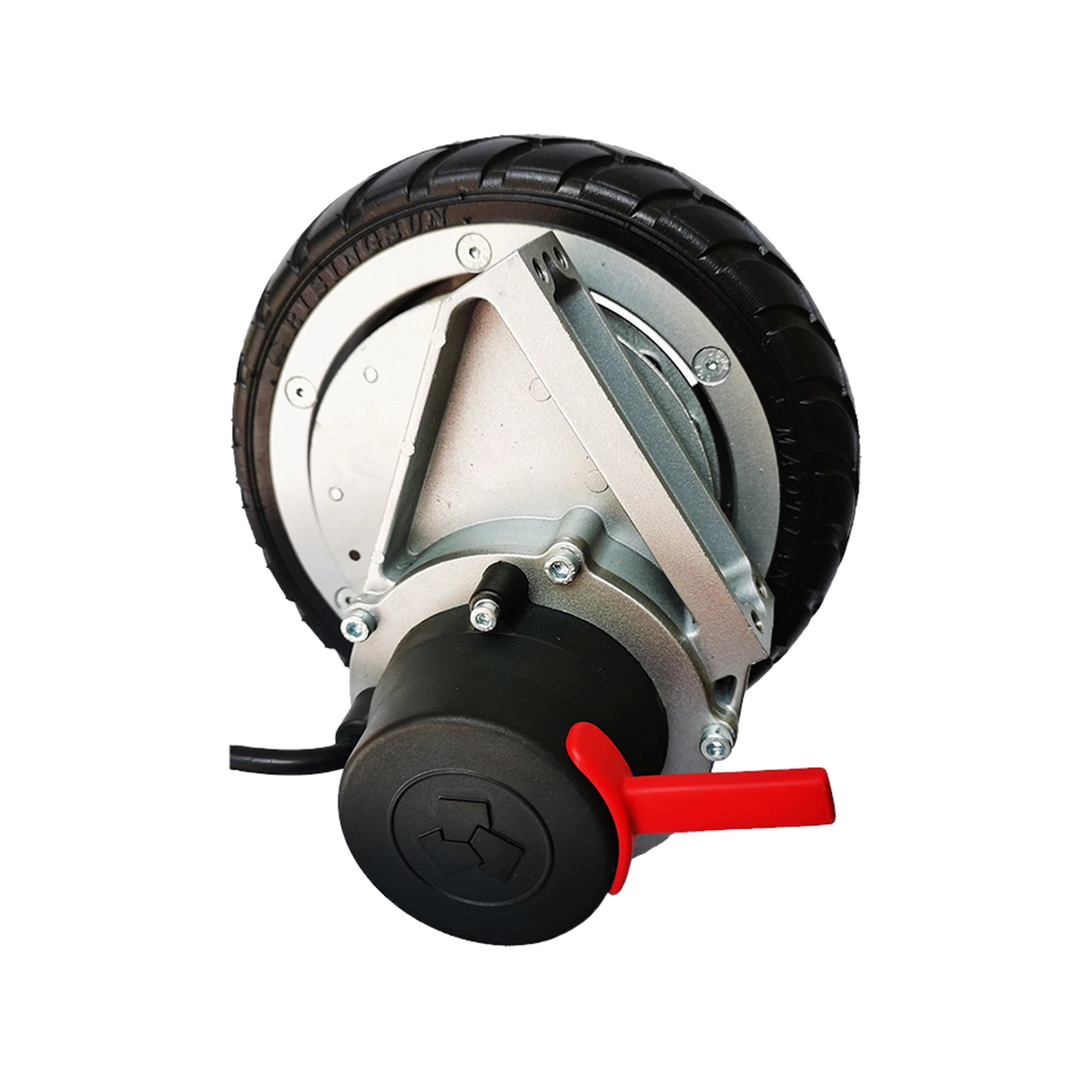

The DR8 includes a hand/electric changeover switch: flip to manual mode and the chair pushes freely like a manual wheelchair — easy for attendants, transport, and tight indoor spaces.
Hand/electric switchMotor Demo Video
See the wheelchair drive motor in action.
Key Specifications
Full specifications for your product documentation — ZVCARE brushed and brushless wheelchair motors.
DR1 / DR2 / DR3 Brushed
200W, 250W, 320W at 24V — cost-effective brushed gear motors with electromagnetic brakes.

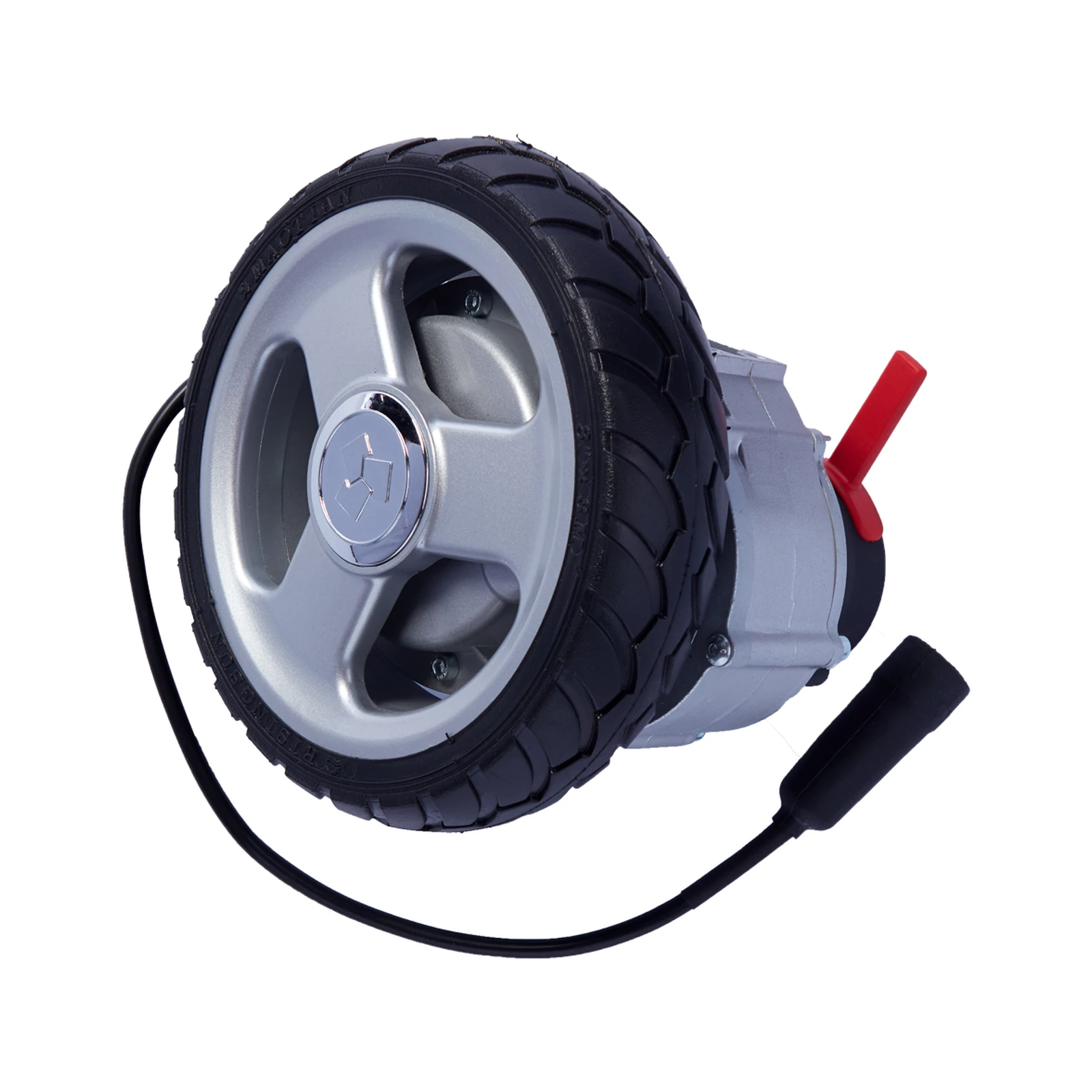

DR8 Brushless Electric Wheelchair Motor
250W 8-inch wheel motor — maintenance-free, quiet, higher efficiency.
Electromagnetic Brake
Release-to-stop, power-off holding, locked on slopes — on every model.
Factory-Matched Controllers
Brushed motors pair with the iV1; the DR8 pairs with the iV2.
Brushed DC Gear Motors — DR1 / DR2 / DR3
Brushless Wheel Motor — DR8
Brushed vs Brushless at a Glance
Get detailed technical documentation for your market
Download Full Spec SheetHow to Choose: Brushed or Brushless
Pick brushed (DR1 / DR2 / DR3) when upfront cost matters most and the chair serves moderate daily use — lower cost, simple control, strong starting torque. Pick brushless (DR8) when you want to promise customers quieter operation, no brush maintenance, and longer service life. Either way, the motor and controller must be the same type — pair brushed motors with our iV1 brushed controller and the DR8 with the iV2 brushless controller.
Key Facts at a Glance
What every dealer should know about ZVCARE motors.
- Electromagnetic brake on every model: release-to-stop, power-off holding, locked on slopes.
- Two drive philosophies: brushed 200–320W for value models; brushless DR8 for quiet, maintenance-free premium positioning.
- Matched with the right controller: brushed ↔ iV1, brushless ↔ iV2 — never mixed, factory tested as a set.
Talk to our factory team about motors
Get a QuoteFrequently Asked Questions
Get instant answers to common inquiries about brushed and brushless motors, ordering process, and support services.
How do I choose between brushed and brushless motors?
It comes down to cost versus lifetime value. Brushed motors (DR1/DR2/DR3) cost less upfront, control simply, and deliver strong starting torque — ideal for value-positioned chairs. Brushless (DR8) costs more initially but runs quieter, needs no brush maintenance, wastes less energy as heat, and lasts much longer. Match the choice to your market positioning.
Do I have to buy the motor and controller together?
We strongly recommend it. Brushed motors must pair with the iV1 brushed controller; the brushless DR8 must pair with the iV2 brushless controller — they cannot be mixed. Factory-matched sets are tested together before shipping, which eliminates compatibility issues for your technicians.
What does the electromagnetic brake actually do?
Three things: when the rider releases the joystick the chair stops; when power is cut the brake still holds; and on a slope the chair stays locked in place. It uses a solenoid valve in the motor — unlike a pure electronic brake, which can let the chair roll back on inclines.
What is the difference between the DR1, DR2, and DR3?
All three are 24V brushed gear motors with electromagnetic brakes. The difference is power: DR1 is 200W (3500 RPM), DR2 is 250W, and DR3 is 320W (4500 RPM). Same mounting concept — choose power to match chair weight and terrain.
Which wheelchairs use the DR8 brushless motor?
The DR8 is our 8-inch brushless wheel motor, fitted on models like the EW100. It suits any 24V wheelchair or electric trolley design needing quiet, maintenance-free drive.
What maintenance does a brushed motor need?
Carbon brushes are wearing parts — over a long service life they eventually need inspection and replacement, unlike the maintenance-free brushless DR8. For dealers this is a straightforward service item, and we supply guidance and spare brushes.
What are your MOQ, lead time, and warranty for motors?
MOQ is 1 pair, lead time is 7 days after payment, and motors carry a 12-month warranty. OEM options (power rating, mounting, packaging) are available — contact Peter or Alice for wholesale pricing.
Still have questions about ZVCARE motors?
Ask Our TeamBusiness Terms
Straightforward terms designed for distributors testing a new market.
1-Pair MOQ
MOQ: 1 pair — order a single set to test your market before committing to volume.
7-Day Lead Time
Lead time: 7 days after payment received.
12-Month Warranty
Warranty: 12 months for motors. Claims require the product serial number plus photos/videos; covers normal use only.
OEM / ODM
OEM/ODM: power rating, mounting configuration, and packaging available — contact our factory team and we'll confirm feasibility and pricing.
Volume Discounts
Stable pricing for repeat orders; graduated discounts by volume.
Ready to Add ZVCARE Motors to Your Parts Line?
1-pair MOQ and 7-day lead time — put factory-matched wheelchair motors on your shelf this month. Contact our factory team for wholesale pricing and OEM options.
